☞ For Space-Constrained, High-Performance IoT Designs

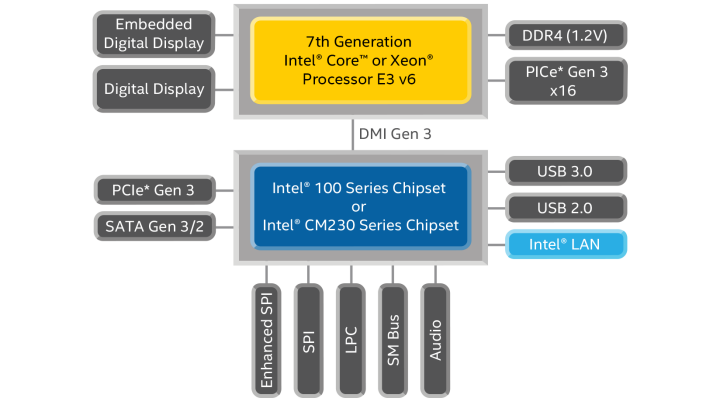

The 7th generation Intel® Core™ mobile processor family and Intel® Xeon® processor E3-1500 v6 product family are manufactured on Intel's most up-to-date and optimized 14 nm technology. When paired with an Intel® 100 series or Intel® CM230 series chipset, these processors offer even greater CPU and graphics performance as compared to the previous generation. The H-series processors offer thermal design power (TDP) options of 45W (with 35W cTDP down), 35W, and 25W, for an exceptional balance of power and performance. The H-series processors are ideally suited for space-constrained and purpose-built designs such as industrial computing, digital signage, public sector and aerospace systems, and industrial automation.
Processor Specifications
| Processor Name | Cache | Clock Speed | Power | Memory | | Intel® Xeon® Processor E3-1501M v6 | 6M | 2.90 GHz | 45W | DDR4-2400 | | Intel® Xeon® Processor E3-1501L v6 | 6M | 2.10 GHz | 25W | DDR4-2400 | | Intel® Xeon® Processor E3-1505M v6 | 8M | 3.0 GHz | 45W | DDR3L-1600; DDR4-2133 | | Intel® Xeon® Processor E3-1505L v6 | 8M | 2.2 GHz | 25W | DDR3L-1600; DDR4-2133 | | Intel® Core™ i7-7820EQ Processor | 8M | 3.0 GHz | 45W | DDR3L-1600; DDR4-2133 | | Intel® Core™ i5-7440EQ Processor0 | 6M | 2.9 GHz | 45W | DDR3L-1600; DDR4-2133 | | Intel® Core™ i5-7442EQ Processor | 6M | 2.1 GHz | 25W | DDR3L-1600; DDR4-2133 | | Intel® Core™ i3-7100E Processor | 3M | 2.9 GHz | 35W | DDR3L-1600; DDR4-2133 | | Intel® Core™ i3-7102E Processor | 3M | 2.1 GHz | 25W | DDR3L-1600; DDR4-2133 |
Chipset Specifications
| Chipset Name | Power | Features | | Intel® QM175 Chipset | 6W | Up to six SATA ports (6 Gbps); 14 total USB ports (up to 10 USB 3.0); up to 20 PCI Express* x1 gen 3.0 ports; 1x16, 2x8 or 1x8+2x4 PCI Express* graphics support; memory channels/DIMM per channel = 2/2; support Intel® vPro™ technology | | Intel® HM175 Chipset | 6W | Up to four SATA ports (6 Gbps); 10 total USB ports (up to 4 USB 3.0); up to six PCI Express* x1 gen 2.0 ports; 1 x 16 PCI Express* graphics support; memory channels/DIMM per channel = 2/1 | | Intel® CM238 Chipset | 3.7W | Supports ECC and Intel® Active Management Technology 12.0; up to eight SATA ports (6 Gbps); 14 total USB ports (up to 10 USB 3.0); up to 20 PCI Express* x1 Gen 3 ports; 1x16, 2x8 or 1x8+2x4 PCI Express* graphics support; memory channels/DIMM per channel = 2/2 |
|
|
