Intel Coffee Lake Platform |

8th Generation Intel¢ç Core¢â Processor Family and Intel¢ç Xeon¢ç Processor E-2100M Family (Coffee Lake H)

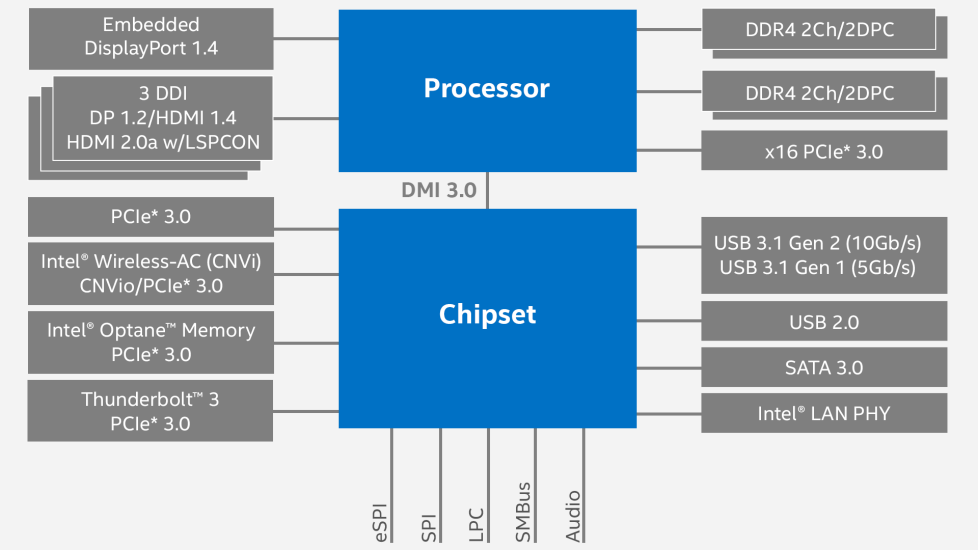

The 8th generation Intel¢ç Core¢â processor family and Intel¢ç Xeon¢ç processor E-2100M family (Coffee Lake H) introduce the first 6-core processors for performance-demanding applications. These processors are manufactured on Intel's most up-to-date and optimized 14 nm technology. When paired with an Intel¢ç 300 series or Intel¢ç CM240 series chipset, these processors offer even greater CPU and graphics performance as compared to the previous generation and introduce native USB 3.1 Gen2 (10Gb/s) support. The H-series processors offer thermal design power (TDP) options of 45W (with 35W cTDP- down) for an exceptional balance of power and performance. The H-series processors are ideally suited for space-constrained and purpose-built designs such as digital signage, retail transaction terminals, and kiosks, smart cities and health care.
Processors
Processor | # of Cores | # of Threads | Frequency | TDP | Cache | Memory Types | vPro | Intel¢ç Core¢â i5-8300H Processor | 4 | 8 | 2.30 GHz | 45W | 8MB | DDR4-2666,LPDDR3-2133 | No | Intel¢ç Core¢â i5-8400H Processor | 4 | 8 | 2.50 GHz | 45W | 8MB | DDR4-2666,LPDDR3-2133 | Yes | Intel¢ç Core¢â i7-8750H Processor | 6 | 12 | 2.20 GHz | 45W | 9MB | DDR4-2666,LPDDR3-2133 | No | Intel¢ç Core¢â i7-8850H Processor | 6 | 12 | 2.60 GHz | 45W | 9MB | DDR4-2666,LPDDR3-2133 | Yes | Intel¢ç Core¢â 95-8950HK Processor | 6 | 12 | 2.90 GHz | 45W | 12MB | DDR4-2666,LPDDR3-2133 | No | Intel¢ç Xeon¢ç Processor E-2176M | 6 | 12 | 2.70 GHz | 45W | 12MB | DDR4-2666,LPDDR3-2133 | Yes | Intel¢ç Xeon¢ç Processor E-2186M | 6 | 12 | 2.90 GHz | 45W | 12MB | DDR4-2666,LPDDR3-2133 | Yes |
Chipsets
Chipset | TDP | Max # of PCIe Lanes | USB Configuration | Max # of SATA 6.0 Gb/s Ports | Mobile Intel¢ç CM246 Chipset | 3W | 24 | 10 Total USB 3.1 Ports
- Up to 6 USB 3.1 Gen 2 Ports
- Up to 10 USB 3.1 Gen 1 Ports
14 USB 2.0 Ports | 8 | Mobile Intel¢ç QM370 Chipset | 3W | 20 | 10 Total USB 3.1 Ports
- Up to 6 USB 3.1 Gen 2 Ports
- Up to 10 USB 3.1 Gen 1 Ports
14 USB 2.0 Ports | 4 | Mobile Intel¢ç HM370 Chipset | 3W | 24 | 8 Total USB 3.1 Ports
- Up to 4 USB 3.1 Gen 2 Ports
- Up to 8 USB 3.1 Gen 1 Ports
14 USB 2.0 Ports | 4 |
|
|
|
|
|
