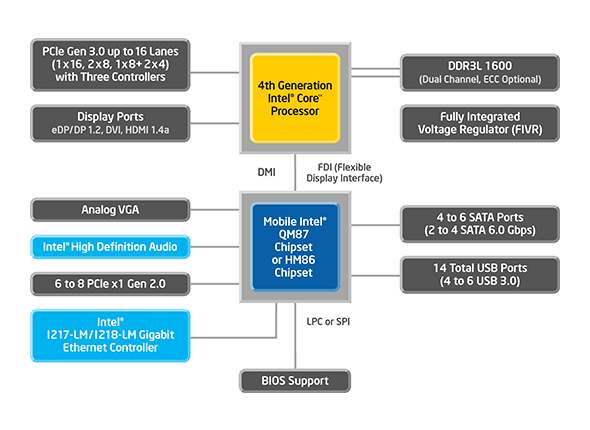

4세대 인텔® 코어™ 프로세서(모바일 인텔® QM87 및 HM86 칩셋 포함)
이전 명칭 Shark Bay 모바일(Haswell + Lynx Point)
☞ 개요
이러한 프로세서는 3D 트라이게이트 트랜지스터를 사용한 22nm 프로세스 기술로 제조된 인텔® 마이크로아키텍처(이전 명칭 Haswell)를 기반으로 합니다. 이 플랫폼은 3세대 인텔® 코어™ 프로세서보다 더 강력해진 CPU, 그래픽, 미디어 성능, 유연성, 향상된 보안 성능을 지원하므로 광범위한 지능형 시스템에 적합합니다.
인텔® HD 그래픽 4600: 비디오, 2D/3D 그래픽 및 대화형 컨텐츠를 표시하는 장치를 위한 고급 미디어 및 그래픽 성능을 제공합니다.
Intel® AVX2(Intel® Advanced Vector Extensions 2): 신호 및 이미지 처리 응용 프로그램의 컴퓨팅 성능을 가속화합니다.
인텔® 고급 암호화 표준 새 명령어: 데이터 암호화 및 해독을 위한 하드웨어 가속화를 지원합니다.
인텔® Flex I/O: 필요한 구성에 따라 SATA 6.0Gbps 포트 4-6개, PCI Express* Gen 2.0 포트 6-8개, USB 3.0 포트 4-6개를 지원합니다.
인텔® v프로™ 기술: 중요한 보안 및 관리 기능을 위한 탁월한 하드웨어 지원을 제공합니다.
프로세서
| 프로세서 번호 | 캐시,클록속도 | 전력 | 메모리 | 제품 기술 | Intel® Core™ i7-4700EQ
processor | 6MB cache,
up to 3.40 GHz | 47W | Dual channel DDR3L 1600 | Intel® AES New Instructions (Intel® AES-NI), Intel® Advanced Vector Extensions (Intel® AVX), Intel® Turbo Boost Technology, Intel® Hyper-Threading Technology (Intel® HT Technology), Intel® vPro™ Technology, error correcting code (ECC) optional | Intel® Core™ i5-4422E
processor | 3MB cache,
up to 2.90 GHz | 25W | Dual channel DDR3L 1600 | Intel® HD Graphics 4600, Intel® AES New Instructions (Intel® AES-NI), Intel® Advanced Vector Extensions2 (Intel® AVX2), Intel® Turbo Boost Technology, Intel® Hyper-Threading Technology (Intel® HT Technology), Intel® vPro™ Technology, error correcting code (ECC) optional | Intel® Core™ i5-4410E
processor | 3MB cache,
up to 2.90 GHz | 37W | Dual channel DDR3L 1600 | Intel® HD Graphics 4600, Intel® AES New Instructions (Intel® AES-NI), Intel® Advanced Vector Extensions2 (Intel® AVX2), Intel® Hyper-Threading Technology (Intel® HT Technology), Intel® vPro™ Technology, error correcting code (ECC) optional | Intel® Core™ i5-4402E
processor | 3MB cache,
up to 2.70 GHz | 25W | Dual channel DDR3L 1600 | Intel® HD Graphics 4600, Intel® AES-NI, Intel® Advanced Vector Extensions 2 (Intel® AVX2), Intel® Turbo Boost Technology, Intel® Hyper-Threading Technology (Intel® HT Technology), Intel® vPro™ Technology, error correcting code (ECC) optional | Intel® Core™ i5-4400E
processor | 3MB cache,
up to 3.30 GHz | 37W | Dual channel DDR3L 1600 | Intel® HD Graphics 4600, Intel® AES-NI, Intel® Advanced Vector Extensions 2 (Intel® AVX2), Intel® Turbo Boost Technology, Intel® Hyper-Threading Technology (Intel® HT Technology), Intel® vPro™ Technology, error correcting code (ECC) optional | Intel® Core™ i3-4112E
processor | 3MB cache,
1.80 GHz | 25W | Dual channel DDR3L 1600 | Intel® HD Graphics 4600, Intel® AES New Instructions (Intel® AES-NI), Intel® Advanced Vector Extensions2 (Intel® AVX2), Intel® Hyper-Threading Technology (Intel® HT Technology), error correcting code (ECC) optional | Intel® Core™ i3-4110E
processor | 3MB cache,
2.60 GHz | 37W | Dual channel DDR3L 1600 | Intel® HD Graphics 4600, Intel® AES New Instructions (Intel® AES-NI), Intel® Advanced Vector Extensions2 (Intel® AVX2), Intel® Hyper-Threading Technology (Intel® HT Technology), error correcting code (ECC) optional | Intel® Core™ i3-4102E
processor | 3MB cache,
1.60 GHz | 25W | Dual channel DDR3L 1600 | Intel® HD Graphics 4600, Intel® Advanced Vector Extensions2 (Intel® AVX2), Intel® Hyper-Threading Technology (Intel® HT Technology), Intel® Virtualization Technology (Intel® VT), error correcting code (ECC) optional | Intel® Core™ i3-4100E
processor | 3MB cache,
2.40 GHz | 37W | Dual channel DDR3L 1600 | Intel® HD Graphics 4600, Intel® Advanced Vector Extensions2 (Intel® AVX2), Intel® Hyper-Threading Technology (Intel® HT Technology), Intel® Virtualization Technology (Intel® VT), error correcting code (ECC) optional |
칩셋
| 제품 | 패키지 | 전력 | 기능 | Intel® QM87 Chipset for
mobile platforms | FCBGA 695 | 3W | Six SATA ports (two to four SATA 6.0 Gbps); 14 total USB ports (four to six USB 3.0); six to eight PCI Express* (PCIe*) Gen 2.0 ports; supports Intel® vPro™ technology | Intel® HM86 Chipset for
mobile platforms | FCBGA 695 | 3W | Four SATA ports (two to four SATA 6.0 Gbps); 14 total USB ports (two to four USB 3.0); six to eight PCIe Gen 2.0 ports |
☞ PCH Features
■ Direct Media Interface
— Up to 20 Gb/s each direction, full duplex.
— Transparent to software
■ NEW: Flexible IO
— A new architecture that allows some high speed IO signals to be configured as SATA or USB 3.0 or PCIe
■ PCI Express*
— Up to eight PCI Express root ports
— Supports PCI Express Rev 2.0 running at up to 5.0 GT/s
— Ports 1-4 and 5-8 can independently be configured to support multiple port configurations
— Module based Hot-Plug supported (that is, ExpressCard*)
— NEW: Latency Tolerance Reporting
■ Integrated Serial ATA Host Controller
— Up to six SATA ports
— Data transfer rates supported: 6.0 Gb/s,
■ 3.0 Gb/s, and 1.5 Gb/s on all ports
— Integrated AHCI controller
■ External SATA support on all ports
— 3.0 Gb/s and 1.5 Gb/s support
— Port Disable Capability
■ Intel® Rapid Storage Technology (Intel® RST)
— Configures the PCH SATA controller as a RAID controller supporting RAID 0/1/5/10
■ Intel® Smart Response Technology
■ Intel® High Definition Audio Interface
— PCI Express endpoint
— Independent Bus Master logic for eight general purpose streams: four input and four output
— Support four external Codecs
— Supports variable length stream slots
— Supports multichannel, 32-bit sample depth, 192 kHz sample rate output
— Provides mic array support
— Allows for non-48 kHz sampling output
— Support for ACPI Device States
— Low Voltage
■ Eight TACH signals and Four PWM signals
(Server and Workstation Only)
■ Platform Environmental Control Interface (PECI) and Simple Serial Transport (SST) 1.0 Bus (Server and Workstation Only)
■ USB
— xHCI Host Controller, supports up to 6 SuperSpeed USB 3.0 connections and 14 USB 2.0 connections
— More flexibility in pairing USB 3.0 and USB 2.0 signals to the same connector
— Two EHCI Host Controllers, supporting up to fourteen external USB 2.0 ports
— Support for dynamic power gating and Intel® Power Management Framework(PMF)
— Per-Port-Disable Capability
— Includes up to two USB 2.0 High-speed Debug Ports
— Supports wake-up from sleeping states S1-S4
■ Integrated Gigabit LAN Controller
— Connection utilizes PCI Express pins
— Integrated ASF Management Controller
— Network security with System Defense
— Supports IEEE 802.3
— 10/100/1000 Mbps Ethernet Support
— Jumbo Frame Support
■ Intel® Active Management Technology with System Defense
— Network Outbreak Containment Heuristics
■ Intel® IO Virtualization (Intel® VT-d) Support
■ Intel® Trusted Execution Technology (Intel® TXT) Support
■ Intel® Anti-Theft Technology (Intel® AT)
■ Power Management Logic
— Supports ACPI 4.0a
— ACPI-defined power states (processor driven C states)
— ACPI Power Management Timer
— SMI# generation
— All registers readable/restorable for proper resume from 0 V core well suspend states
— Support for APM-based legacy power management for non-ACPI implementations
■ Integrated Clock Controller
— Full featured platform clocking without need for a discrete clock chip
— 8 PCIe* 2.0 specification compliant clocks, 4 PCIe 3.0 specification compliant clocks, five 33 MHz PCI clocks,
four Flex Clocks that can be configured for various frequencies, and two 135 MHz clocks for DisplayPort*.
■ External Glue Integration
— Integrated Pull-down and Series resistors on USB
■ Enhanced DMA Controller
— Two cascaded 8237 DMA controllers
— Supports LPC DMA
■ SMBus
— Interface speeds of up to 100 kbps
— Supports SMBus 2.0 Specification
— Host interface allows processor to communicate using SMBus
— Slave interface allows an internal or external microcontroller to access system resources
— Supports most two-wire components that are also I2C compatible
■ SMLink
— Provides independent manageability bus through SMLink0 and SMLink1
— SMLink0 dedicated to LAN PHY and NFC, operating up to 1 MHz
— SMLink1 dedicated to EC or BMC, operating up to 100 kHz
■ High Precision Event Timers
— Advanced operating system interrupt scheduling
■ Timers Based on 8254
— System timer, Refresh request, Speaker tone output
■ Real-Time Clock
— 256 byte battery-backed CMOS RAM
— Integrated oscillator components
— Lower Power DC/DC Converter implementation
■ System TCO Reduction Circuits
— Timers to generate SMI# and Reset upon detection of system hang
— Timers to detect improper processor reset
— Supports ability to disable external devices
■ JTAG
— Boundary Scan for testing during board manufacturing
■ Serial Peripheral Interface (SPI)
— Supports up to two SPI devices
— Supports 20 MHz, 33 MHz, and 50 MHz SPI devices
— NEW: Supports Quad IO Fast Read, Quad Output Fast Read, Dual IO Fast Read
— NEW: Support for TPM over SPI with the addition of SPI_CS2# chip select pin
— NEW: Supports Serial Flash Discoverable Parameter (SFDP)
— Support up to two different erase granularities
■ Firmware Hub I/F supports BIOS Memory size up to 8 MB
■ Low Pin Count (LPC) I/F
— Supports two Master/DMA devices.
— Support for Security Device (Trusted Platform Module) connected to LPC
■ Interrupt Controller
— Supports up to eight legacy interrupt pins
— Supports PCI 2.3 Message Signaled Interrupts
— Two cascaded 8259 with 15 interrupts
— Integrated IO APIC capability with 24 interrupts
— Supports Processor System Bus interrupt delivery
■ 1.05 V operation with tolerance up to 3.3 V IO
■ 1.05 V Core Voltage
■ Integrated Voltage Regulators for select power rails
■ GPIO
— Open-Drain, Inversion
— GPIO lock down
■ Intel® Flexible Display Interface
■ Display
— Analog Display (VGA) Interface
— Side band signals AUX CH, DDC and HPD
— Backlight Control and Panel Power sequencing signals
■ Package
— 23 mm x 22 mm FCBGA (Desktop Only)
— 20 mm x 20 mm FCBGA (Mobile Only)
