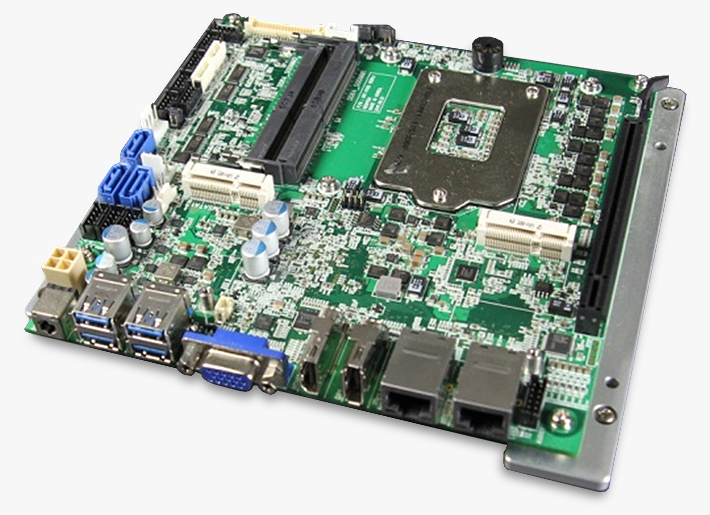

  Intel Sky Lake-S Platform (Intel 6th Gen. Processor)


Intel 6th Generation Core i7/ i5/ i3 processor
Industrial SBC(Single Board Computer), Fanless

Specification

System
CPUIntel® 6th Generation Core i7 / i5 / i3 Processor
BIOSAMI uEFI BIOS, 128Mbit SPI Flash ROM
System ChipsetIntel Q170 Express Chipset
I/O ChipsetNCT6106D(Nuvoton)
System MemoryTwo 260-pin DDR4 2133MHz SO-DIMM Socket,
Supports Up to 32GB Max
RAIDRAID 0,1
H/W Status MonitorCPU temperature monitoring, Voltage monitoring
CPU fan speed control
Expansion Interface1x PCIe(16x), 1x Full size Mini-PCIe, 1x mSATA


Display
ChipsetIntel® Intergrated HD Graphics 530
ResolutionVGA Mode: 1920 x 1200 @ 60Hz
HDMI Mode: 4096 x 2160 @ 30Hz (Supports HDMI 1.4a)
DP Mode : 4096 x 2304 @60Hz
Multiple DisplayTriple Display


Audio
ChipsetRealtek ALC888S Support 5.1-CH Audio
Audio InterfaceMic-in, Line-out(SPK-OUT)


Ethernet
Chipset1x Intel® I219LM PCIe Gigabit Ethernet
1x Intel® 82574L PCIe  Gigabit Ethernet (support EtherCAT)
Ethernet Interface10/100/1000 Base-Tx Gigabit Ethernet Compatible


I/O
LAN2 Port / 2 x Gigabit EthernetOn-Board
HDMI1 Port / 1 x HDMIOn-Board
VGA1 Port / 1 x VGAOn-Board
USB4 Port / 4 x USB 3.0,
5 Port / 5 x USB 2.0
On-Board
Cable
4 x USB3.0
5 x USB2.0
DC-IN1 PortOn-Board
LVDS1 Port / 1 x LVDSCable
RS-2324x RS232Cable
RS-4221x RS422Cable
RS-4851x RS485Cable
SATA3 Port / 3 x SATA IICable
mSATA1 Port (colay with full size Mini-PCIe)
PCIe1 Port / PCIe(16x)Card
Mini PCIe1 Port / 1 Full-size Mini PCIeCard


Mechanical and Environment
Power Type12V~24V DC-in (DC Jack / 4-pin ATXPWR Con)
Operating Temperature0 ~ 60°C (32 ~ 140°F)
Storage Temperature-40 ~ 75°C (-40 ~ 167°F)
Operating Humidity0% ~ 90% Relative Humidity, Non-condensing
Dimensions6.7" x 6.7" (170mm x 170mm)
Weight1130g


● BIOS : AMI UEFI BIOS (AptioV) by Xannex Technologies
