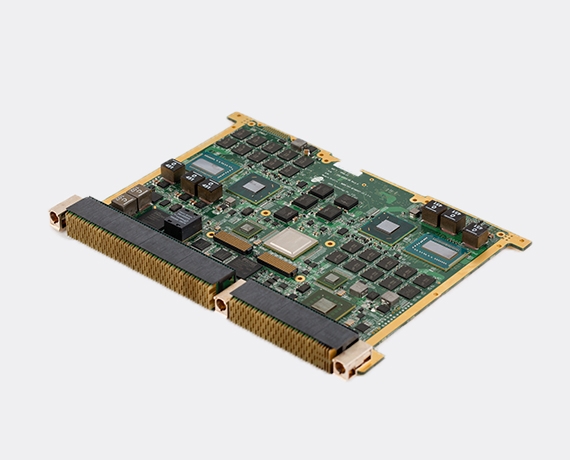

  Intel Chief River Platform (Intel Ivy Bridge Processor) - 6U SBC


The VPX6-C4, 6U OpenVPX SBC(Single Board Computer) is based on the highly integrated two Intel® 3rd Generation Core™ i7-3612QE(Ivy Bridge/Quad-core) processor platform. It brings up to 15% (In computing) and 50% (In 3D Graphics) performance improvement over the previous generation. The VPX6-C4 is a full-featured 6U OpenVPX SBC, designed for harsh-environment, air and conduction-cooled aerospace and defense applications such as command/control, ISR, radar, sonar and signal processing. With a wide complement of on-board I/O, PCI Express® Gen2 fabric, Serial RapidIO and XMC expansion, the VPX6-C4 satisfies the most demanding fielded applications for unmanned aerial and ground vehicles, tactical aircraft, armored vehicles and rugged naval systems.

※ Features ※
● FORM-FACTOR : 6U OpenVPX
● PROCESSOR : Two Intel Processors3rd Gen, Corei7-3612QE, 2.1GHz(268GFLOP)
● MAIN MEMORY : 8GB DDR3 w/ECC per Processor
● STORAGE : 32GB SSD (SATA) per Processor
● BIOS ROM : 64Mbit(SPI BIOS) per Processor
● GRAPHIC : 1x DVI on Processor-A
                   1x VGA on Processor-B
● PMC/XMC : XMC only
● SERIAL I/O : 5 1x RS422/485 and 2x RS232
                      or 1x RS422/485 per Processor
● ETHERNET : 2x 1000Base-T per Processor
                     2x 1000Base-BX per Processor
● USB : 1x USB per Processor
● GPIO/SATA : 16x GPIO
                      1x SATA per Processor
● ETC : 2x 8Lane or 1x8Lane PCIe Gen2
            4x 4-Lane sRIO2.1
● OPERATING SYSTEM : Windows 7/8 Linux, VxWorks
● OPERATING TEMPERATURE : -40℃ ~ 85℃(Card Edge)

● BIOS : AMI EFI BIOS(Aptio) by Xannex Technologies
