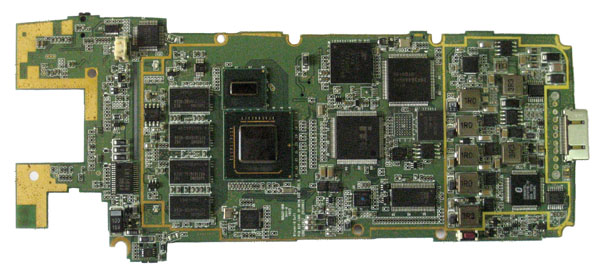

  Intel Menlow Platform (Intel ATOM Z530 Processor) - All-in-One mobile 단말기


All-in-One mobile 단말기


※ 제품사양 ※
■  Main Chipset
● Processor
  ▶ Intel eMenlow ATOM / Silverthorne / 1.6GHz / 533FSB / HT / 2.2W / FCBGA8 / 12x14mm / 441balls / 0.6mm pitch / Z530 / AC80566UE025DW(MM 897825)
● Miin Chipset
  ▶ Intel Poulsbo SCH / FCBGA3 / 22x22mm / 1249 balls / 0.6mm pitch / US15W / AF82US15● Main Memory
  ▶ DDR2 SDRAM 512MB(4 Devices) 533MHz / 1Gb(64Mx16) / K4T1G164QQ-HCD5
● Embedded Controller
  ▶ ITE IT8516E / LQFP 128L / 16 x 16mm / LPC IF
● Audio
  ▶ Intel HD Audio codec / Conexant CX20584 / 48-QFN / 7 x 7mm / w/Class-D AMP
● Flash ROM
  ▶ SPI / SST 25VG080B / SOIC8P(5.2mm x 8mm)
● Ext. UART Controller
  ▶ PCI Express / EXAR XR17V358 / 176 FPBGA / 13 x 13mm / 8-ch UART
● Touch Screen Controller
  ▶  HanTouch HT-ECU4-3 / 4wire / Resistive / USB IF / 5 x 5mm / MLP-28
● Main Clock
  ▶ ICS9UMS9610 / CK610 / 48-pin MLF / 6 x 6mm
■  RTC
● Poulsbo built-in RTC / CR2032 battery
■  External Ports
● Video1(LCD)
  ▶ LTS380WS-C01 / 4.8" / 1024x600 / 262K color / LVDS / 15.4:9 / with Touch pannel / LED Backlight unit
● Video2(Optional)
  ▶ Chrontel CH7317 VGA
● Touch Pannel
  ▶ LCD Pannel w/Touch pannel
● Storage Device
  ▶ 1.8" / ZIF connector IF / Parallel ATA(IDE I/F) / HDD or SSD
● SD Card slot
  ▶ Poulsbo Internal SD/MMC Interface / Micro SD slot
● External USB Host port
  ▶ USB 2.0 port
● USB Client
  ▶ poulsbo Internal USB Port 2 - Client USB / USB 2.0 mini connector
■  Power
● Battery
  ▶ 4700mA/h / 7.4V / Smart Battery / 2 Cell
● VRM Power
  ▶ MAXIM MAX8796GTJ+ / 32P TQFN / 5 x 5mm
● Power Adapter
  ▶ 12V 3A
■  Peripheral
● Camera module
  ▶ CCD module + USB IF module / Normal Port Only
● Main Key Interface
  ▶ EC Internal Keypad IF
● Wireless LAN
  ▶ 802.11a/b/g / SUMMIT module IF / Poulsbo Internal SDIO IF
● IrDA
  ▶ EC CIR Port direct connection(HSDL3201)
● GPS module
  ▶ RS232 / GSC3f/LPx-7989
● Modem module
  ▶ GSM - Telit 864 Series
  ▶ WCDMA - Siemens HC25 Series
● Barcode module
  ▶ MICOM + Barcode module
● RFID
  ▶ RX/RX/VCC/GND connector
● Printer module
▶ MICOM + Printer module
● Card Reader(IC/MSR) + Keypad module
  ▶ Ext. IP Device
● Bluetooth
▶ BC41B143A06-IXB-E4 / Bluetooth 2.0 + EDR / USB Interface
■  Cradle
▶ 1 USB + 1 RS232(w/ Driver) + 1 USB Client
● BIOS : AMI Legacy BIOS (AMIBIOS8) by Xannex Technologies
● EC Firmware : Xannex Technologies
